CH430 Single Cylinder Hydraulic Cone Crusher

Scan your phone once

Summary Features：

Nominal capacity: 26 – 215 mtph
Max. feed size: 42-214 mm (1.7 – 8.43 in.)
Motor power: 132 kW (177 hp)
Closed side setting (CSS) range: 4 – 41 mm (0.2 – 1.6 in.)
Eccentric throw range: 16 – 36 mm
Mantles (inner liners: A, B, S, FF-B, EF
Concaves (outer liners): EC, C, MC, M, MF, F, EF
Weight: 10,516 kg (23,181 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

+86-15138928657

ONLINE INQUIRY

Product Details

Product Introduction

The CH430 Cone Crusher features an advanced, compact design that delivers exceptional capacity relative to its footprint. This unit is equipped with a hydraulically supported, dual-supported main shaft and a rugged, heavy-duty crusher structure. It also offers adjustable eccentric throw and a constant feed opening for stable operation.

The combination of a versatile chamber range, adjustable throw, and high-power drive system provides exceptional application flexibility to adapt to various crushing installations. This highly versatile crusher supports multiple crushing chamber configurations, allowing precise customization to meet specific operational requirements.

Furthermore, the CH430 integrates our advanced Hydrocone technology, enabling optimal performance under varying feed conditions while preventing overload. Equipped with an Automatic Setting Regulation (ASR) control system, it delivers real-time performance monitoring and management, ensuring the crusher operates consistently at peak efficiency.

Technical Parameter

Item	Value
Type	Cone Crusher
Production Capacity (tons/hour)	5-1000 tons/hour
Place of origin	China
Weight	2000 kilograms
Warranty	1 year
Core components	PLC, pressure vessels, gears, motors, engines
Key Selling Points	High productivity
Motor Type	AC Motor
Color	As per your request
Application	Price of cone crusher
Brand name	West Machinery
Dimensions (LWH)	According to the model
Mechanical inspection report	Provide
Video shipping-inspection	Provide

Product Features

Hydroset™ system provides safety and setting-adjustment functions
ASRi™ automatically adapts crusher to feed conditions
Unibody mainframe ensures optimal strength and less maintenance
Lifting from above minimizes risks and allows for safer maintenance
Constant liner profile design.

Primary cone crusher

Previous:Single Cylinder Hydraulic Cone Crusher

Next :Last

Previous Last Return Item

Related Information

Choose language

Professional focus and quality innovation

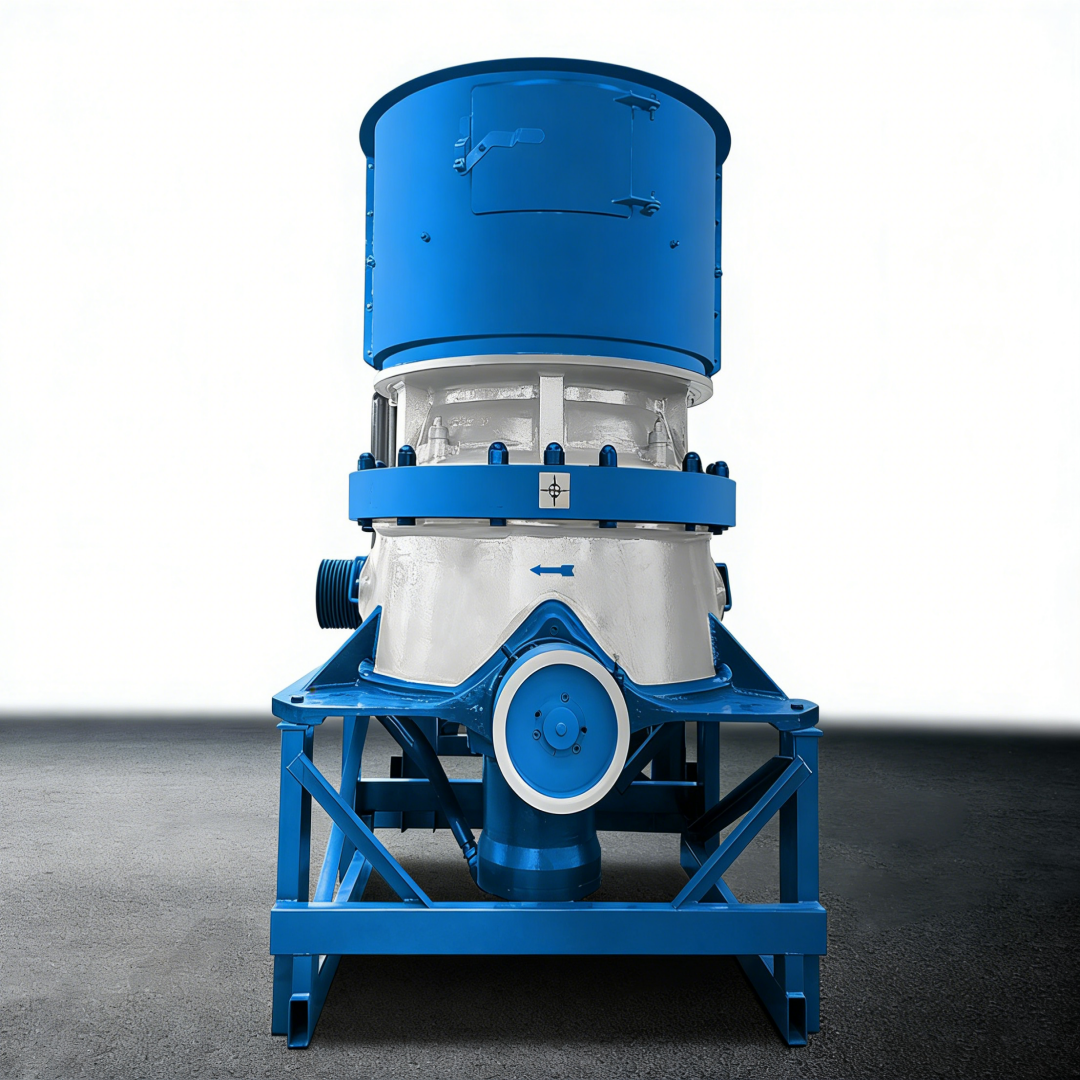

single cylinder hydraulic cone crusher is developed by introducing the product technology and design concepts of international famous mining...
