GZD Vibrating Feeder | High Efficiency Feeding Equipment-Westlake Machinery

GZD Vibrating Feeder

Scan your phone once

Summary Features：

GZD series vibrating feeder adopts vibrating motor as the vibrating source, which is used for feeding big raw material before jaw crusher evenly.

Main features: High Crushing Efficiency;Versatile Applications;Excellent After-Sales Service

Feeding Size: 450-1000mmCapacity: 30-600tph

Multiple models for selection, can be customized according to customer requirements

+86-15138928657

ONLINE INQUIRY

Product Details

Product Introduction

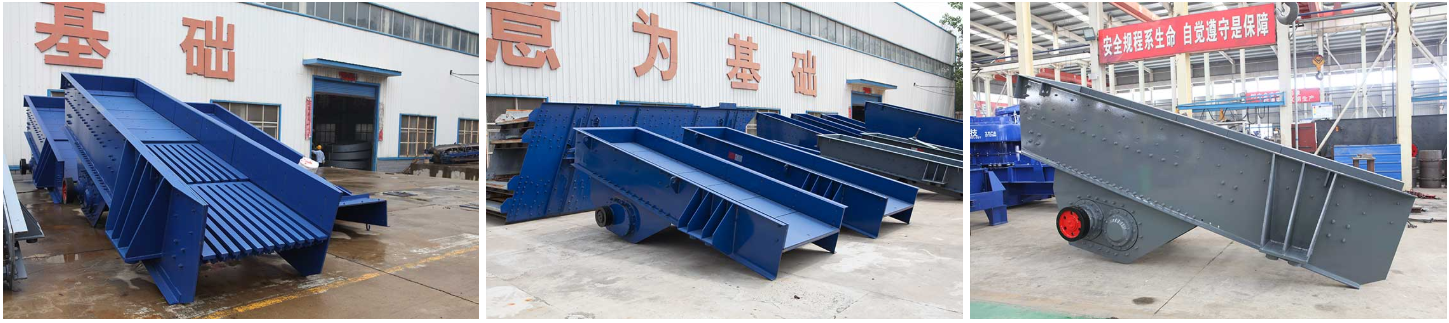

GZD series vibrating feeder adopts vibrating motor as the vibrating source, which is used for feeding big raw material before jaw crusher evenly. It also has the function pre-screen the material using bar or screen mesh in order to remove the soil and fine raw material. The structure of machine is simple and maintain easily. The machine is widely used in hydroelectric, mine and building aggregate.

Technical Parameter

Model	Hopper size (mm)	Max. feeding size (mm)	Capacity (tph)	Obiquity of material trough (°)	Power (kW)	Total weight (t)
Model	Hopper size (mm)	Max. feeding size (mm)	Capacity (tph)	Obiquity of material trough (°)	Power (kW)	Total weight (t)
GZD-650X2300	650x2300	300	80	10	1.1X2	2.79
GZD-750X2500	750x2500	350	100	10	1.1X2	3.26
GZD-850X3000	850x3000	400	120	10	3X2	3.6
GZD-1000X3600	1000X3600	500	150	10	5.5X2	3.89
GZD-1100X4200	1100X4200	580	240	10	5.5X2	4.17
GZD-1300X4900	1300X4900	650	450	10	7.5X2	5.2
GZD-1500X5600	1500X5600	1050	450-800	10	11X2	7.5

Product Features

Stable vibration, reliable operation and long life;
can adjust the exciting force, can be changed and control traffic at any time, convenient adjustment and stability;
vibration motor as the source of vibration, low noise, low of power consumption, good of the adjustment performance, no phenomenon of impinge material.
