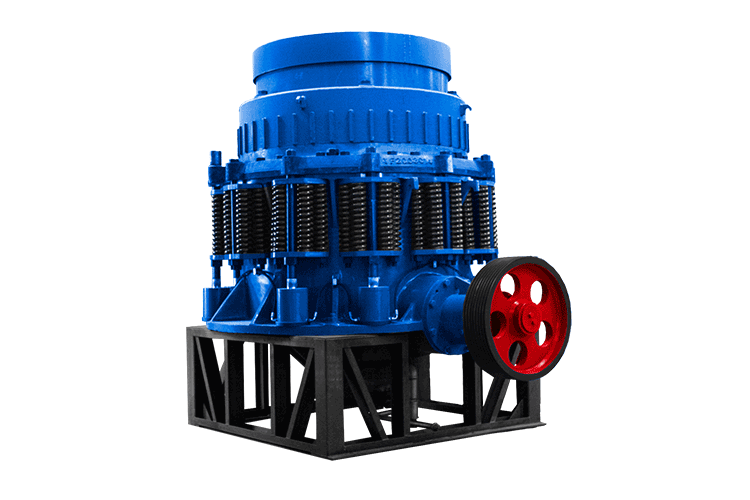

Simmons Cone Crusher is widely used in metallurgy, building materials, construction, chemical, and silicate industries, suitable for medium and above hardness of all kinds of ore and rock.
Main features: Reliable structure,;High production efficiency;Convenient adjustment and economical.
Multiple models for selection, can be customized according to customer requirements
Contact us（EMail：westlakemachinery@gmail.com，WhatsApp：+86 15138928657 ）
Simmons Cone Crusher is a high-performance cone crusher independently manufactured by GreatWall Machinery. This series of cone crushers is superior to ordinary spring cone crushers in terms of production capacity, product particle size, product shape, equipment weight, maintenance, and operation. Based on the principle of laminated crushing and the concept of more crushing and less grinding, a modern high-performance crusher is designed and developed, which integrates high swing frequency, optimized cavity shape, and reasonable stroke. It is characterized by a reliable structure, high production efficiency, convenient adjustment, and economical. The spring safety system of this series Simmons cone crusher is an overload protection device, which can make metal foreign matter pass through the crushing cavity without endangering the machine. The seal adopts a grease seal, which avoids the defects of easy blockage of water supply and drainage system and easy mixing of water and oil. This machine is divided into standard coarse type and short head fine type, which can be selected by users according to specific needs.
| Specification | Model | Cavity type | Max. diameter of moving cone (mm) | Discharge opening (mm) | Max. feeding size(mm) | Power (kW) | Weight （t） |
|---|---|---|---|---|---|---|---|
| 2'FT | PSGB-0607 | （F） | 600 | 6-38 | 60 | 22 | 4500 |
| PSGB-0609 | （M) | 600 | 10-38 | 80 | 22 | 4500 | |
| PSGB-0611 | （C） | 600 | 13-38 | 90 | 22 | 4500 | |
| PSGD-0603 | （F） | 600 | 3.0-13 | 30 | 22 | 4500 | |
| PSGD-0605 | （C） | 600 | 5.0-16 | 40 | 22 | 4500 | |
| 3'FT | PSGB-0910 | （F） | 900 | 9.0-22 | 85 | 75 | 9980 |
| PSGB-0917 | （C） | 900 | 13-38 | 150 | 75 | 9980 | |
| PSGB-0918 | (EC） | 900 | 25-38 | 150 | 75 | 9980 | |
| PSGD-0904 | （F） | 900 | 3.0-13 | 35 | 75 | 10530 | |
| PSGD-0906 | （M) | 900 | 3.0-16 | 65 | 75 | 10530 | |
| PSGD-0907 | （C） | 900 | 6.0-19 | 85 | 75 | 10530 | |
| 4.25'FT | PSGB-1313 | （F） | 1295 | 13-31 | 115 | 160 | 22460 |
| PSGB-1321 | （M) | 1295 | 16-38 | 178 | 160 | 22460 | |
| PSGB-1324 | （C） | 1295 | 19-51 | 205 | 160 | 22460 | |
| PSGB-1325 | (EC） | 1295 | 25-51 | 220 | 160 | 22460 | |
| PSGD-1306 | （F） | 1295 | 3.0-16 | 54 | 160 | 22590 | |
| PSGD-1308 | （M) | 1295 | 6.0-19 | 76 | 160 | 22590 | |
| PSGD-1310 | （C） | 1295 | 8.0-25 | 89 | 160 | 22590 | |
| PSGD-1313 | (EC） | 1295 | 16-25 | 113 | 160 | 22590 | |
| 5.5'FT | PSGB-1620 | （F） | 1676 | 16-38 | 178 | 220 | 43270 |
| PSGB-1624 | （M) | 1676 | 22-51 | 205 | 220 | 43270 | |
| PSGB-1626 | （C） | 1676 | 25-64 | 228 | 220 | 43270 | |
| PSGB-1636 | （EC） | 1676 | 38-64 | 313 | 220 | 43270 | |
| PSGD-1607 | （F） | 1676 | 5.0-13 | 60 | 220 | 43870 | |
| PSGD-1608 | （M) | 1676 | 6.0-19 | 76 | 220 | 43870 | |
| PSGD-1613 | （C） | 1676 | 10.0-25 | 113 | 220 | 43870 | |
| PSGD-1614 | (EC） | 1676 | 13-25 | 113 | 220 | 43870 | |
| 7'FT | PSGB-2127 | （F） | 2134 | 19-38 | 236 | 400 | 86730 |
| PSGB-2133 | （M) | 2134 | 25-51 | 284 | 400 | 86730 | |
| PSGB-2136 | （C） | 2134 | 31-64 | 314 | 400 | 86730 | |
| PSGB-2146 | (EC） | 2134 | 38-64 | 391 | 400 | 86730 | |
| PSGD-2110 | （F） | 2134 | 5.0-16 | 89 | 400 | 89500 | |
| PSGD-2113 | （M) | 2134 | 10.0-19 | 113 | 400 | 89500 | |
| PSGD-2117 | （C） | 2134 | 13-25 | 151 | 400 | 89500 | |
| PSGD-2120 | (EC） | 2134 | 16-25 | 172 | 400 | 89500 |
Technical upgrading and reasonable design give PYX series cone crusher the advantages of the long crushing arm, large stroke, and large crushing ratio. The distance between the crushing cone and the rolling mortar wall is large in each stroke, which not only allows more materials to enter the crushing chamber, but also forms a larger discharge volume and increases the throughput of materials;
Adopting the special crushing cavity type and using the laminated crushing principle, the crushing effect between particles is produced, so that the proportion of cube in the finished material is increased, the needle-like content is reduced, and the particle size is more uniform;
The main body of the cone crusher is cast steel structure, adopts a large-diameter main shaft, and heavy-duty main frame, and has reinforcing ribs at heavy-duty parts, which greatly improves the stability of the equipment and has stronger quality;
Column cone crusher has a variety of crushing cavity types, and users can flexibly choose between coarse crushing, medium crushing, and fine crushing cavity types according to the actual situation, with strong adaptability.
